Precision mold

INDEX

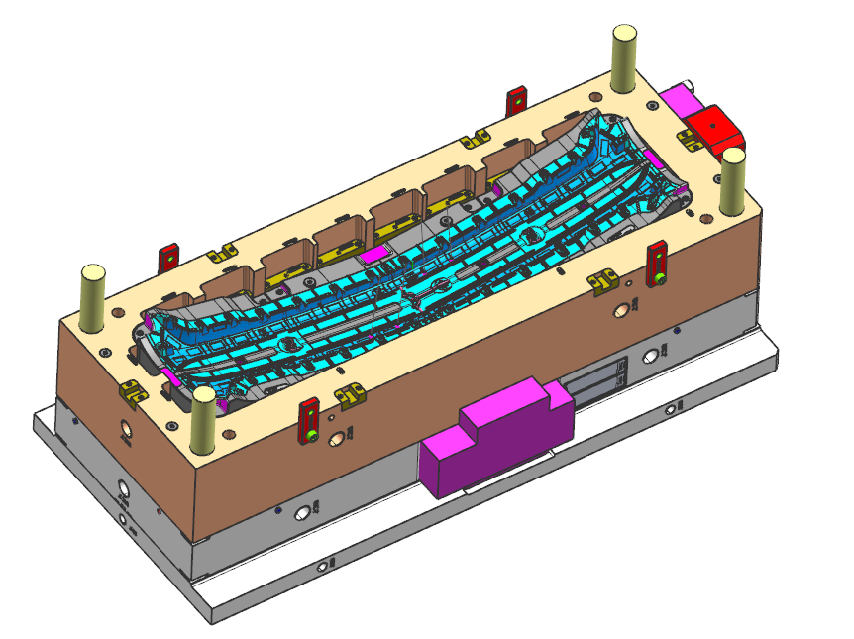

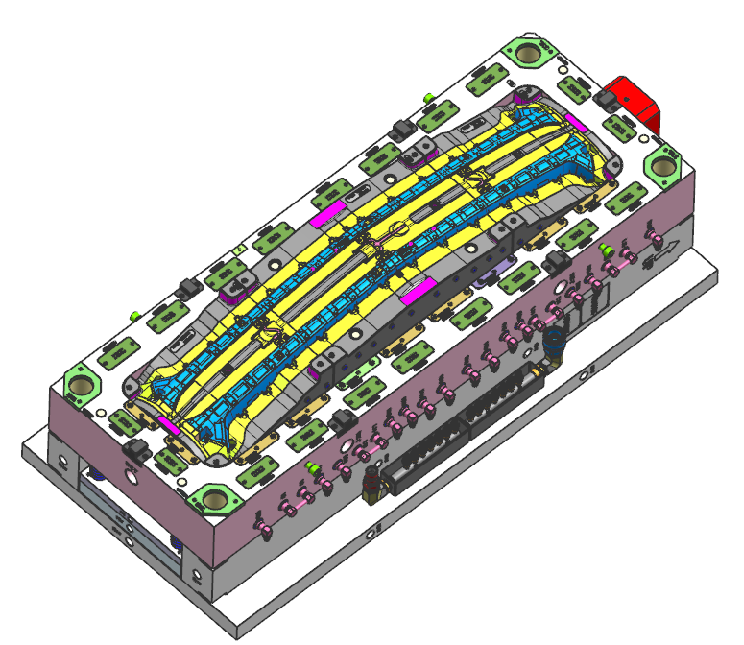

Mould  Information

1

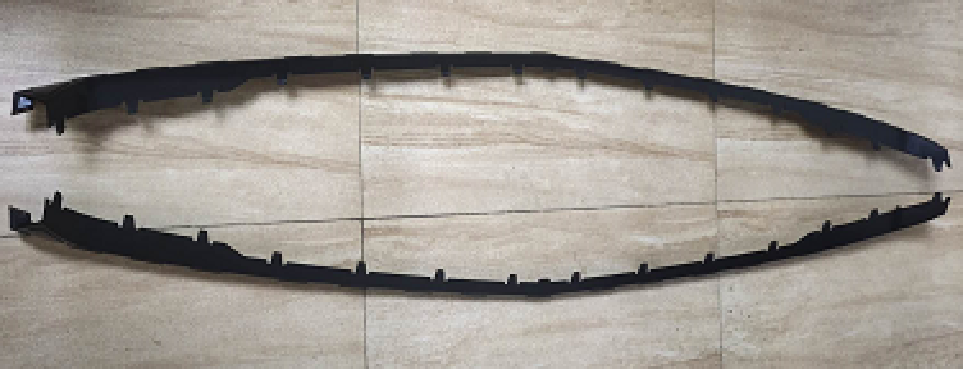

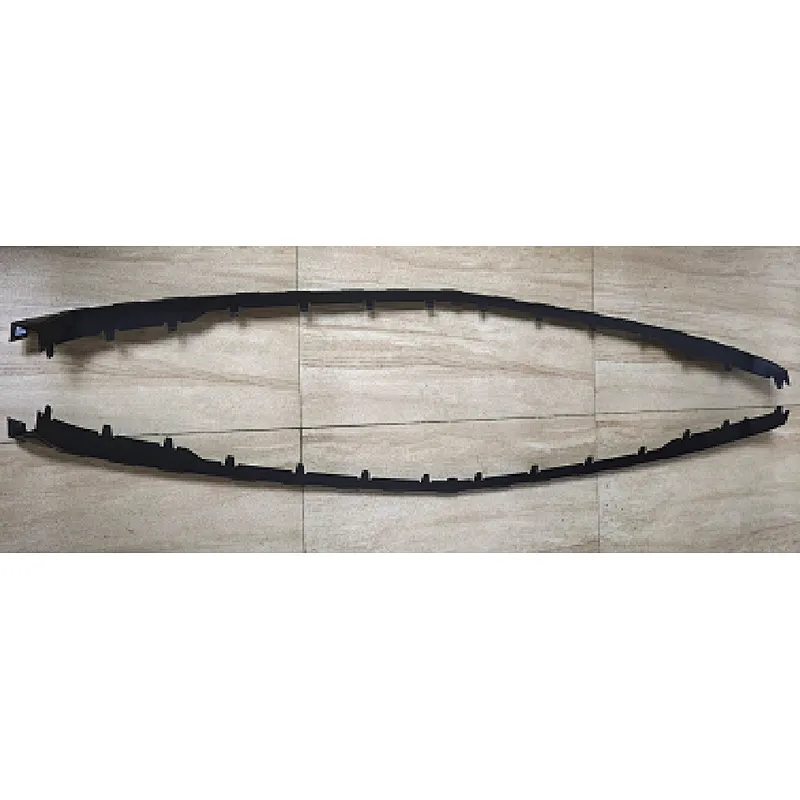

Part  Name

Chevy Center Reinforcement Bracket

2

Molding Material:

ADX 2343 /PP+EPDM-M12-T2

3

Shrinkage Rate:

0.45%

4

Part  Size:

133.06 X 1442.78 X 181.83mm

5

Part  Weight:

276g

6

Cavity Nr:

1+1

7

Gate Type:

Side gate

8

Injection System:

INOCE +cashew gate

9

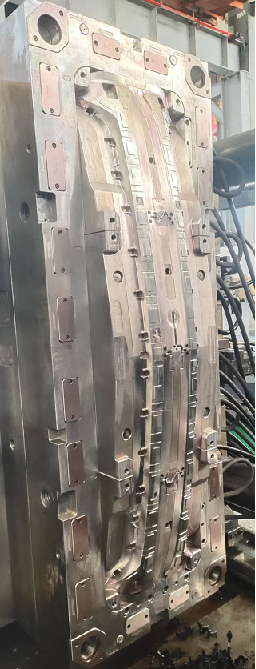

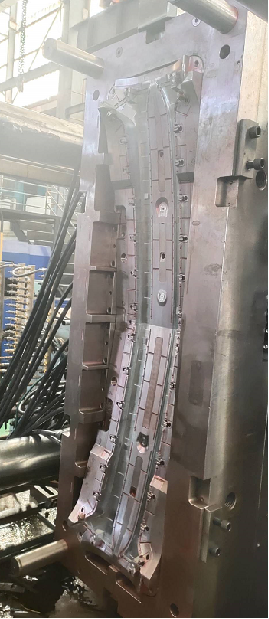

Cavity & Core:

Finkl P20HH HRC35-40

10

Texture/Polish:

A1 polish

11

Mold Size: (mm)

1900*850*980mm

12

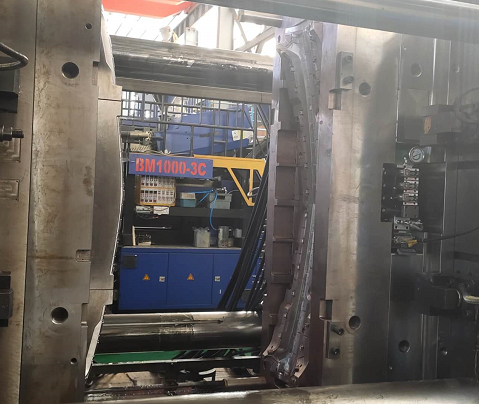

Machine: (Ton)

1200T

13

Cycle Time (sec):

55S

14

T1 Lead Time:

9W

15

Export Country:

America
