Insert Moulds

INDEX

Mould  Information

1

Part  Name

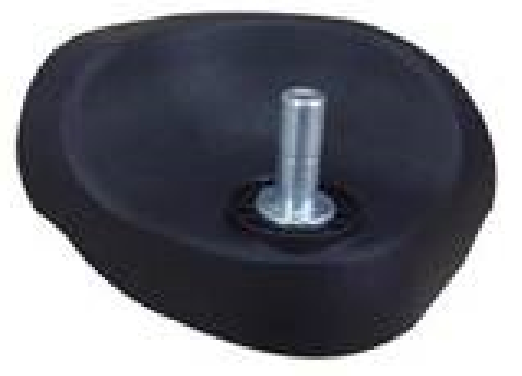

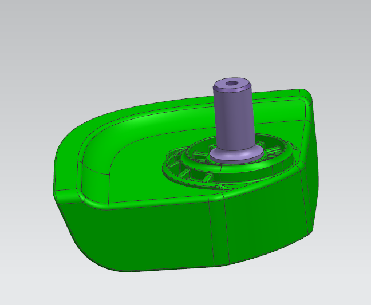

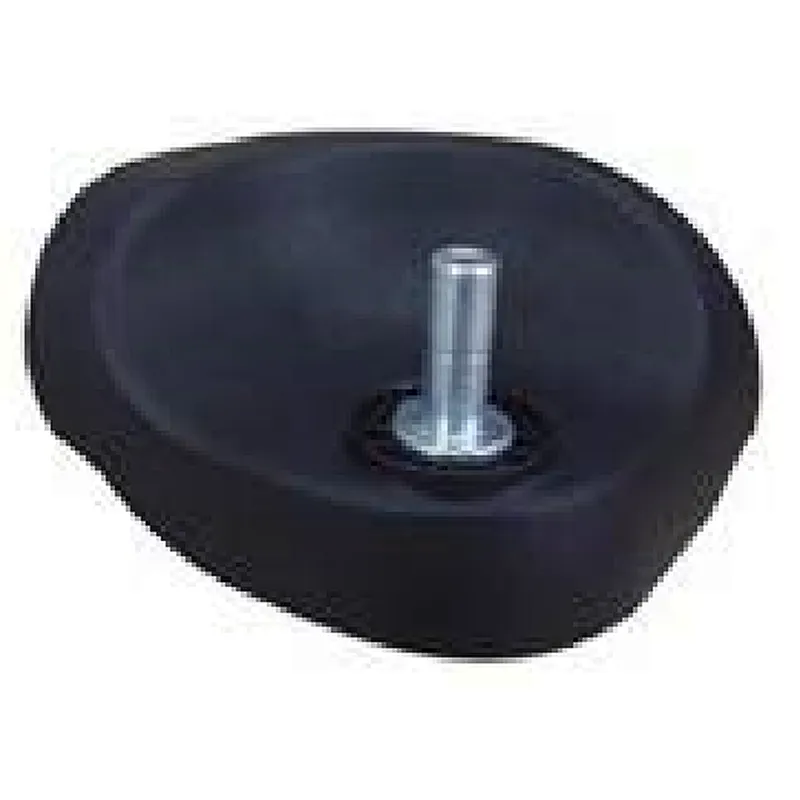

PP18 Housing Overinjected D48

2

Molding Material:

PP 58MNK10

3

Shrinkage Rate:

1.6%

4

Part  Size:

75*68*40mm

5

Part  Weight:

26g

6

Cavity Nr:

1*4

7

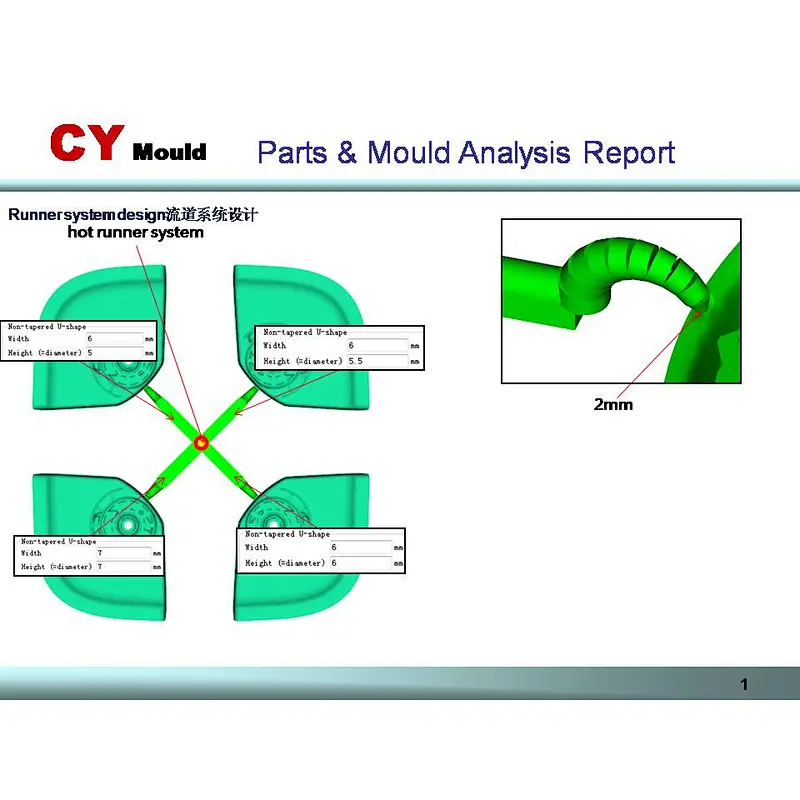

Gate Type:

cashew gate

8

Injection System:

Cold gate

9

Cavity & Core:

ASSAB S136  SUP

10

Texture/Polish:

400# Grit

11

Mold Size: (mm)

450*450*550mm

12

Machine: (Ton)

250T

13

Cycle Time (sec):

42’

14

T1 Lead Time:

4W

15

Export Country:

Belgium
