INDEX | Mould Information | |

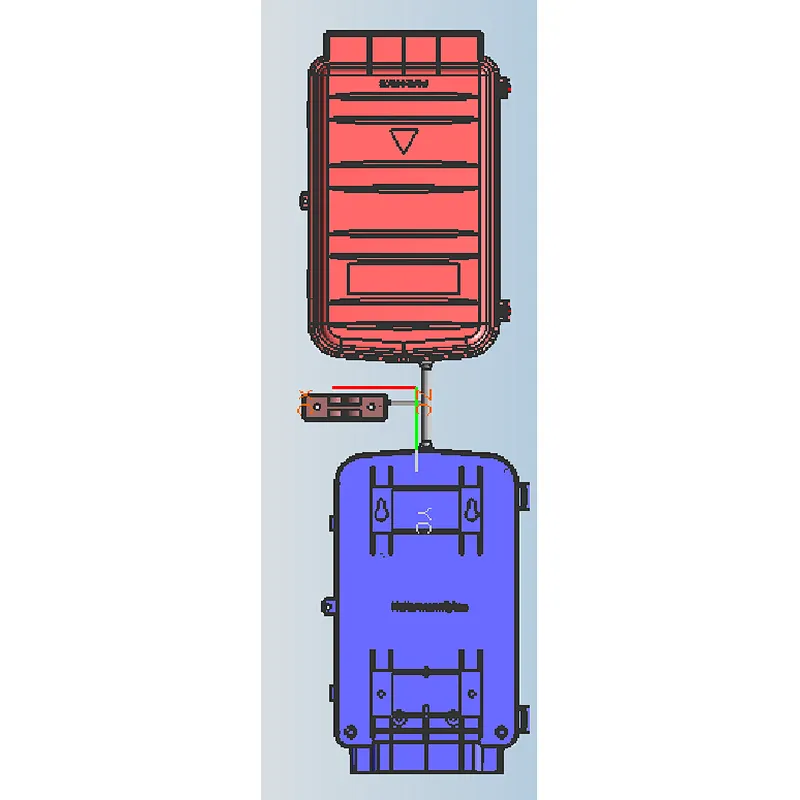

1 | Part Name: | CENTRADOR_INTERMEDIO |
2 | Molding Material: | PP |
3 | Mold Base: | Hasco Equivalent |
4 | Cavity & Core Steel | P20 |
5 | Mold Service Life | 300,000 |
6 | Mold Type | 2 Plate Mold |
7 | Cavity Nr: | 1 |
8 | Gate Type: | Direct Gate |
9 | Injection System: | YUDO hot tip |
10 | Slide Lifter Qty | None |
11 | Texture/Polish: | Demoulding |
12 | Mold Size: | 300*300*360 |
13 | Mould Weight (kg) | 270 |
13 | T1 Lead Time: | 4 |
14 | Export Country: | Spain |
Feature：
1.Ejection system: Using ejector pin
2.The slider install and process require high precision;
3.Filling require running balance
